Indoor PANEL
Meta K
Pixel pitch │ p1.2 GOB p1.5 GOB p1.8 p2.0 p2.5 p3.0 p4.0
Panel size | 640 x 480 mm
Application │ Commercial space Shopping mall Advertising Hospital Church Hotel
Features
Premium features and accurate calibration deliver great performance at an affordable price.

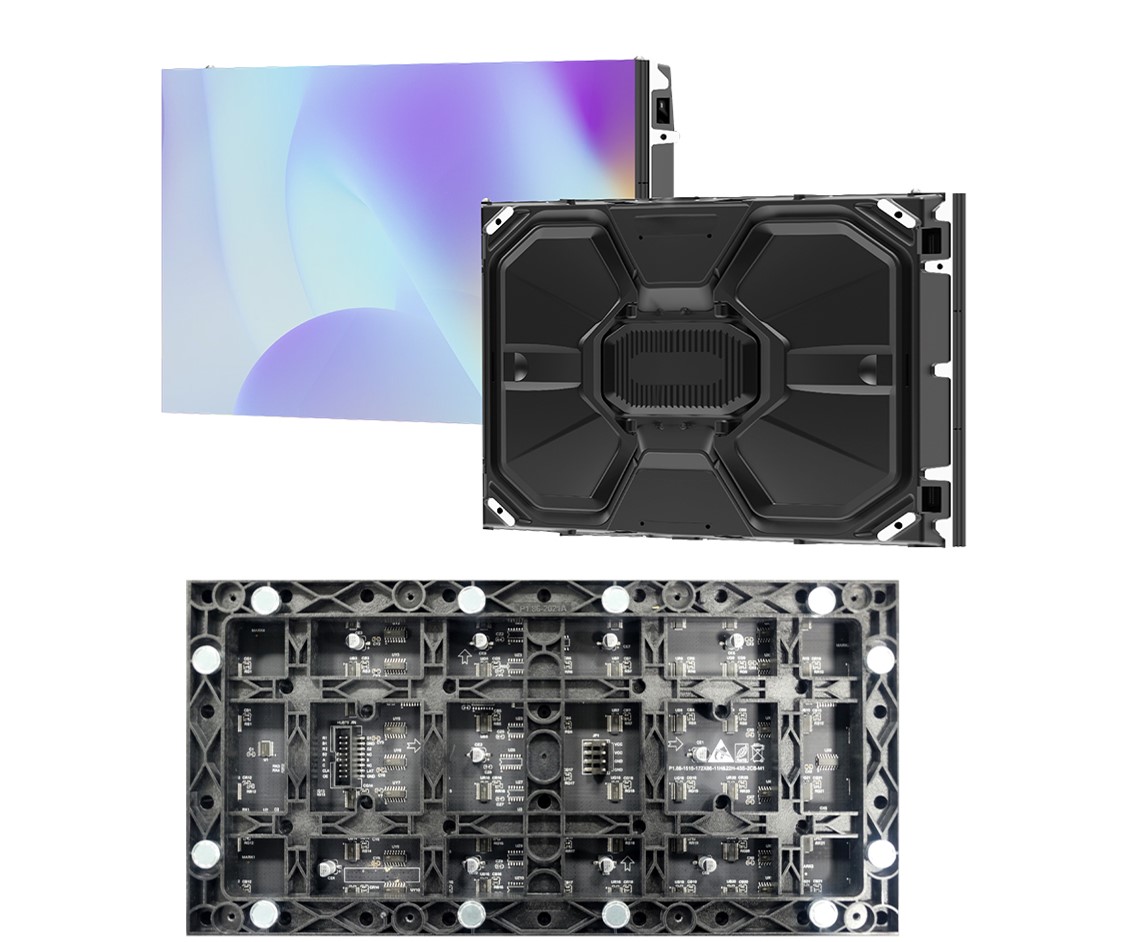

The Meta K is bridged die-cast, with a corner triangular structure to prevent deformation and a center bridge for added rigidity.
No-cable hub boards automatically recognize power and data when modules are attached, making cable-free installation easier and less prone to failure.
A power supply and heat-optimized hub board on the opposite side of the module prevents heat from degrading image quality, and key components are easily maintained from the rear.
It's long-lived.
Installation Examples
Good Shepherd Church
Parish Monthly Back
- Pixel Pitch: 1.8mm
- Screen size: 14.08 x 3.84m
Both Main
- Pixel Pitch: 2.5mm
- Screen size: 5.76 x 3.36m
Monitor
- Pixel Pitch: 2.5mm
- Screen size: 5.12 x 2.88m
Meta K Specification
| Product | Meta K 1.2 GOB | Meta K 1.5 GOB | Meta K p1.8 | Meta K p2.0 | Meta K p2.5 | Meta K p3.0 | Meta K p4.0 |
|---|---|---|---|---|---|---|---|
| Pixel pitch | 1.2 mm | 1.5 mm | 1.86 mm | 2 mm | 2.5 mm | 3.07692 mm | 4 mm |
| Brightness | 600 nit | 600 nit | 600 nit | 600 nit | 700 nit | 700 nit | 700 nit |
| Module size | 320 x 160 mm | 320 x 160 mm | 320 x 160 mm | 320 x 160 mm | 320 x 160 mm | 320 x 160 mm | 320 x 160 mm |
| Panel size | 640 x 480 mm | 640 x 480 mm | 640 x 480 mm | 640 x 480 mm | 640 x 480 mm | 640 x 480 mm | 640 x 480 mm |
| Panel resolution | 512 x 384 px | 416 x 312 px | 344 x 258 px | 320 x 240 px | 256 x 192 px | 208 x 156 px | 160 x 120 px |
| Refresh rate | 3,840 Hz | 3,840 Hz | 3,840 Hz | 3,840 Hz | 3,840 Hz | 3,840 Hz | 3,840 Hz |
| Viewing angle | 160° (H, V) | 160° (H, V) | 160° (H, V) | 160° (H, V) | 160° (H, V) | 160° (H, V) | 160° (H, V) |
| Weight | 22 kg/sqm | 22 kg/sqm | 22 kg/sqm | 22 kg/sqm | 22 kg/sqm | 22 kg/sqm | 22 kg/sqm |
| Working temperature | -20~40℃ | -20~40℃ | -20~40℃ | -20~40℃ | -20~40℃ | -20~40℃ | -20~40℃ |
| Humidity | 10~85% | 10~85% | 10~85% | 10~85% | 10~85% | 10~85% | 10~85% |
| Maintenance | Front & Rear | Front & Rear | Front & Rear | Front & Rear | Front & Rear | Front & Rear | Front & Rear |
| Power consumption | Max. 480 | Avg. 160w/sqm | Max. 480 | Avg. 160w/sqm | Max. 480 | Avg. 160 w/sqm | Max. 480 | Avg. 160 w/sqm | Max. 480 | Avg. 160 w/sqm | Max. 480 | Avg. 160 w/sqm | Max. 480 | Avg. 160 w/sqm |
| Input voltage | AC100~240V 50/60Hz | AC100~240V 50/60Hz | AC100~240V 50/60Hz | AC100~240V 50/60Hz | AC100~240V 50/60Hz | AC100~240V 50/60Hz | AC100~240V 50/60Hz |
| Life span | 100,000 hours | 100,000 hours | 100,000 hours | 100,000 hours | 100,000 hours | 100,000 hours | 100,000 hours |
| Grayscale | 22 bit | 22 bit | 22 bit | 22 bit | 22 bit | 22 bit | 22 bit |
All products are customizable, so please contact us if you would like to change the specs.
