OUTDOOR PANEL
Fusion Fine
Pixel pitch │ p2.9 p3.9 p4.8
Panel size | 500 x 500, 750, 1,000 mm
Application │ Near Field Outdoor Media IP66 Environment
Features
While regular steel products make it difficult to remove modules, Fusion Fine's high resolution and superior hardware construction make it easy to manage.
Fusin Fine is an excellent product that can be used in different climates without any problems.
Designed to be completely sealed against moisture and dust, the
Humid environments, snowstorms, and more.
Front and back maintenance choices improve LED display efficiency even in limited spaces.
The white paint enhances light reflection, and the aluminum modules dissipate heat quickly to keep performance stable.
It won't catch fire in the event of a spark or electric leakage, and unlike other products, flame-retardant materials prevent full-screen fires.
Used on offshore structures and ships, this ultra-strong painting technology will never corrode, even in salty environments.
Increasing the size of the panel can reduce installation labor and screen flatness.

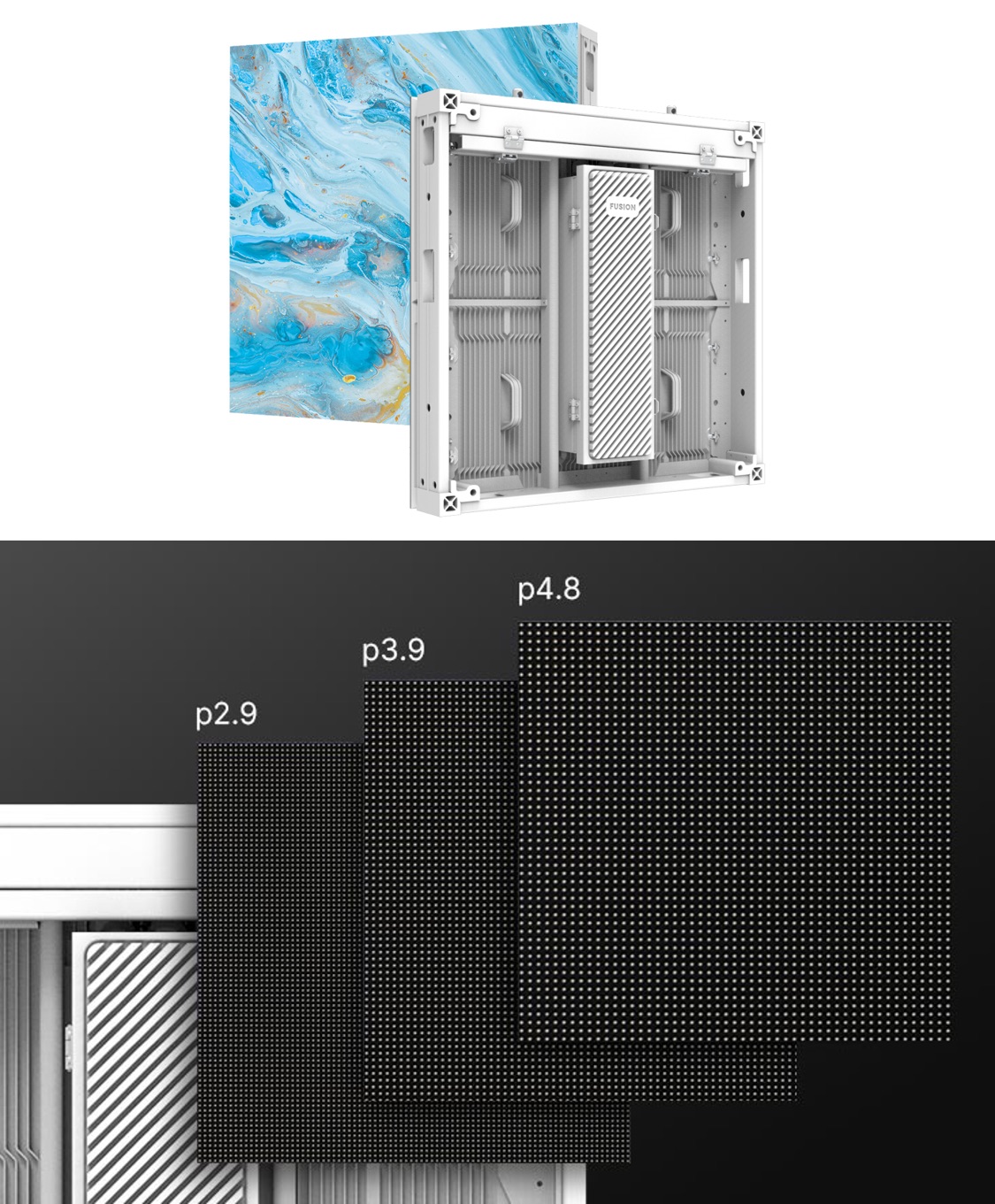

Fusion Fine Specification
| Product | Fusion Fine p2.9 | Fusion Fine p3.9 | Fusion Fine p4.8 |
|---|---|---|---|
| Pixel pitch | 2.97619 mm | 3.90625 mm | 4.8076 mm |
| Brightness | 4,500 nit | 5,000 nit | 5,000 nit |
| Module size | 250 x 250 mm | 500 x 250 mm | 500 x 250 mm |
| Module resolution | 86 x 86 px | 128 x 64 px | 104 x 52 px |
| Panel size | 500 x 500, 750, 1,000 mm | 500 x 500, 750, 1,000 mm | 500 x 500, 750, 1,000 mm |
| Panel resolution | 168 x 336 px (500 x 1,000 mm) | 128 x 256 px (500 x 1,000 mm) | 104 x 208 px (500 x 1,000 mm) |
| Refresh rate | 3,840 Hz | 3,840 Hz | 3,840 Hz |
| Viewing angle | 140° (H, V) | 140° (H, V) | 140° (H, V) |
| Weight | 30 kg/sqm | 30 kg/sqm | 30 kg/sqm |
| Working temperature | -30 to 60 | -30 to 60 | -30 to 60 |
| Humidity | 10~90% | 10~90% | 10~90% |
| Maintenance | Front & Rear | Front & Rear | Front & Rear |
| Power consumption | Max. 750│Avg. 250 w/sqm | Max. 650│Avg. 217 w/sqm | Max. 650│Avg. 217 w/sqm |
| Life span | 100,000 hours | 100,000 hours | 100,000 hours |
| Grayscale | 22 bit | 22 bit | 22 bit |
All products are customizable, so please contact us if you would like to change the specs.
