INDOOR PANEL

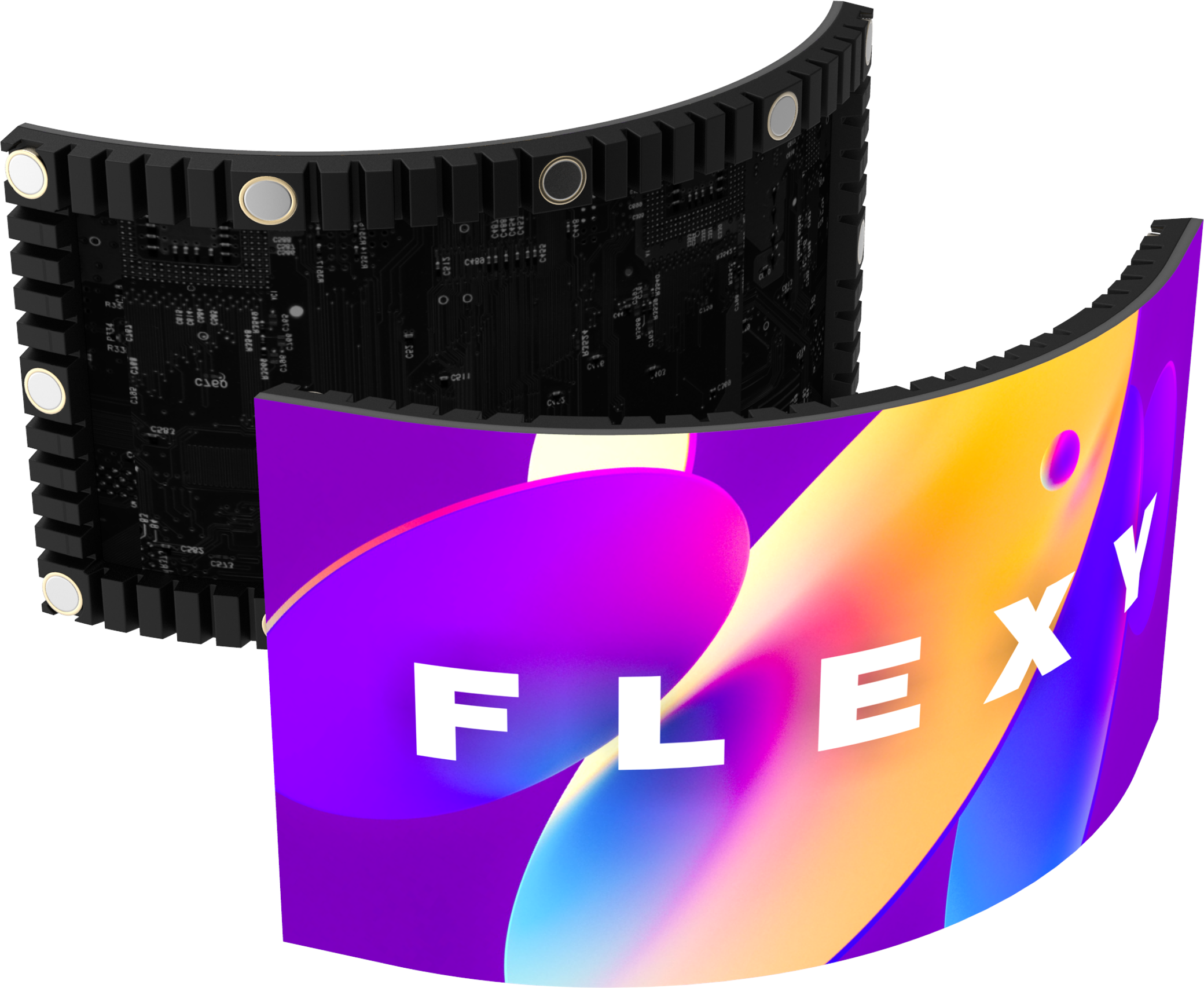

Flexy R
Pixel pitch │ p1.2 p2.0 p2.5 p3.0 p4.0
Application │ Commercial Advertising Ring Design
Features
Traditional steel cabinets have low precision and load-bearing capacity, which leads to deformation. The Flexy R realizes even ring shapes smoothly.
Flexy R is an elastic module that allows you to build screens on poles or irregular surfaces without setting angles.
Flexy R Specification
| Product | Flexy R p1.2 | Flexy R p2.0 | Flexy R p2.5 | Flexy R p3.0 | Flexy R p4.0 |
|---|---|---|---|---|---|
| Pixel pitch | 1.25 mm | 2 mm | 2.5 mm | 3 mm | 4 mm |
| Brightness | 600 nit | 800 nit | 800 nit | 800 nit | 800 nit |
| Module size | 250 x 150 mm | 240 x 120 mm | 240 x 120 mm│320 x 160 mm | 240 x 120 mm | 256 x 128 mm |
| Module resolution | 200 x 120 px | 120 x 60 px | 128 x 64 px (320 x 160 mm) | 80 x 40 px | 64 x 32 px |
| Refresh rate | 3,840 Hz | 3,840 Hz | 3,840 Hz | 3,840 Hz | 3,840 Hz |
| Viewing angle | 160° (H, V) | 160° (H, V) | 160° (H, V) | 160° (H, V) | 160° (H, V) |
| Weight | 30 kg/sqm | 30 kg/sqm | 30 kg/sqm | 30 kg/sqm | 30 kg/sqm |
| Working temperature | -20~40℃ | -20~41℃ | -20~42℃ | -20~43℃ | -20~44℃ |
| Humidity | 10~85% | 10~85% | 10~85% | 10~85% | 10~85% |
| Maintenance | Front | Front | Front | Front | Front |
| Power consumption | Max. 620│207 w/sqm | Max. 550│183 w/sqm | Max. 460│153 w/sqm | Max. 420│140 w/sqm | Max. 350│150 w/sqm |
| Life span | 100,000 hours | 100,000 hours | 100,000 hours | 100,000 hours | 100,000 hours |
| Grayscale | 22 bit | 22 bit | 22 bit | 22 bit | 22 bit |
All products are customizable, so please contact us if you would like to change the specs.
