Outdoor Micro LED

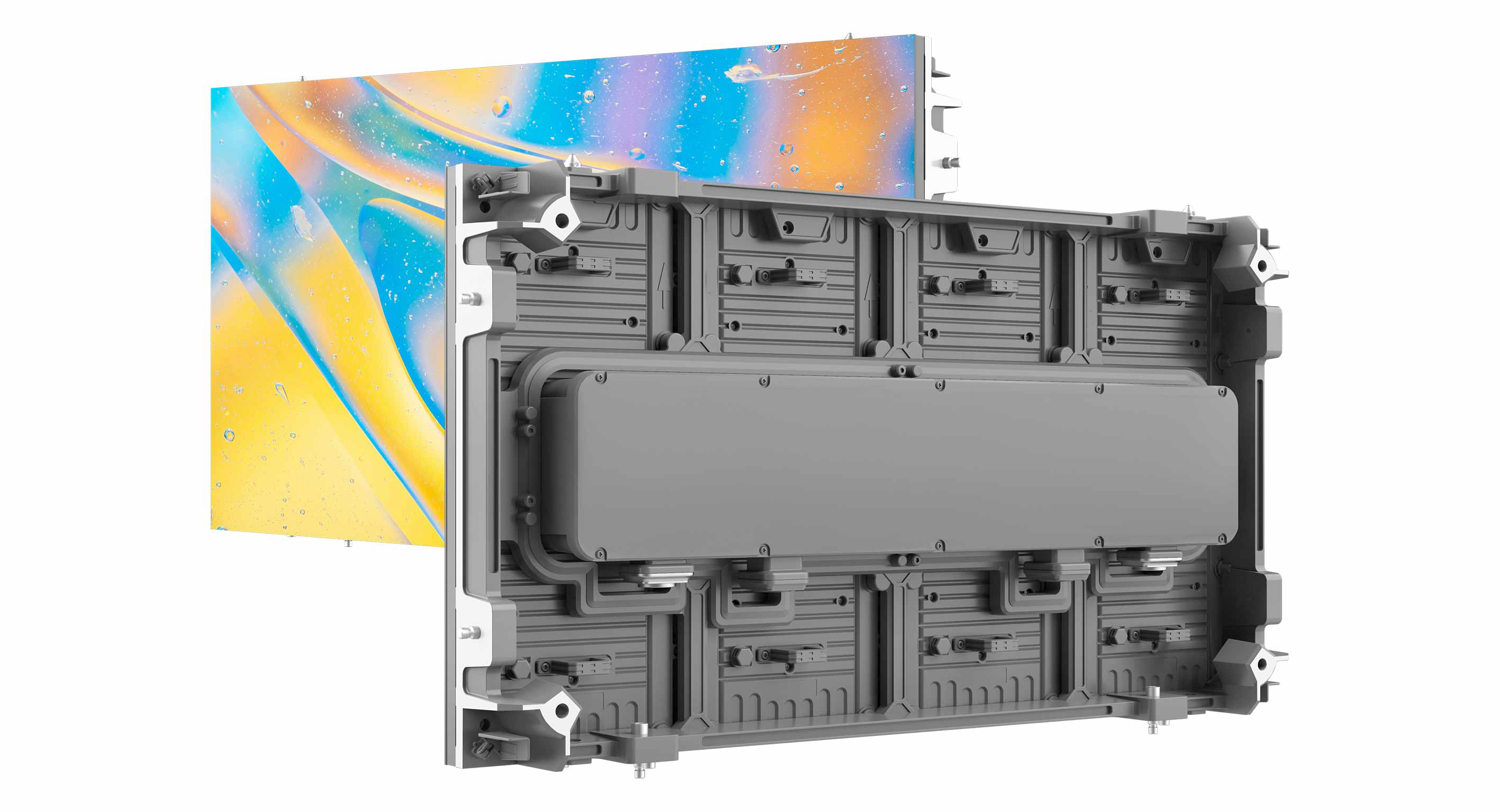

CX Micro LED
Pixel pitch │ p1.2 p1.5 p.19
Panel Size │ 608 x 342 mm
Application | Commercial Ads
Features
Experience true black screens with deep contrast and realism with 5th generation Micro LEDs.
DualCoat is a high-quality double coat that resists temperature changes and protects against scratches and UV fading.
LEDs do discolor over time, premium Flip-chip to minimize aging and discoloration.
HyCon™ maximizes contrast to over 20,000:1, with 3,000 nits offering visibility like 6,000nit.
Optimized maintenance for flexible installation and space efficiency.
Blocks 99.99% UV, ensuring zero discoloration
Reliable performance in extreme conditions, protected from rain, snowstorms, and dust.
CX Micro LED Specification
| Product | CX p1.2 | CX p1.5 | CX p1.9 |
|---|---|---|---|
| Pixel pitch | 1.26666 mm | 1.58333 mm | 1.9 mm |
| Brightness | HyCon 3,000 nit | HyCon 3,000 nit | HyCon 3,000 nit |
| Module size | 152 x 342 mm | 152 x 342 mm | 152 x 342 mm |
| Module resolution | 120 x 270 px | 96 x 216 px | 80 x 180 px |
| Panel size | 608 x 342 mm | 608 x 342 mm | 608 x 342 mm |
| Panel resolution | 480 x 270 px | 384 x 216 px | 320 x 180 px |
| Refresh rate | 3,840 Hz | 3,840 Hz | 3,840 Hz |
| Viewing angle | 178° (H ,V) | 178° (H ,V) | 178° (H ,V) |
| Weight | 40 kg/sqm | 40 kg/sqm | 40 kg/sqm |
| IP rating | IP65 | IP65 | IP65 |
| Working temperature | -30 to 60 | -30 to 60 | -30 to 60 |
| Humidity | 10~90% | 10~90% | 10~90% |
| Maintenance | Front & Rear | Front & Rear | Front & Rear |
| Power consumption | Max. 720 | Avg. 240 w/sqm | Max. 720 | Avg. 240 w/sqm | Max. 720 | Avg. 240 w/sqm |
| Input voltage | AC100~240V 50/60Hz | AC100~240V 50/60Hz | AC100~240V 50/60Hz |
| Life span | 100,000 hours | 100,000 hours | 100,000 hours |
| Grayscale | 22 bit | 22 bit | 22 bit |
