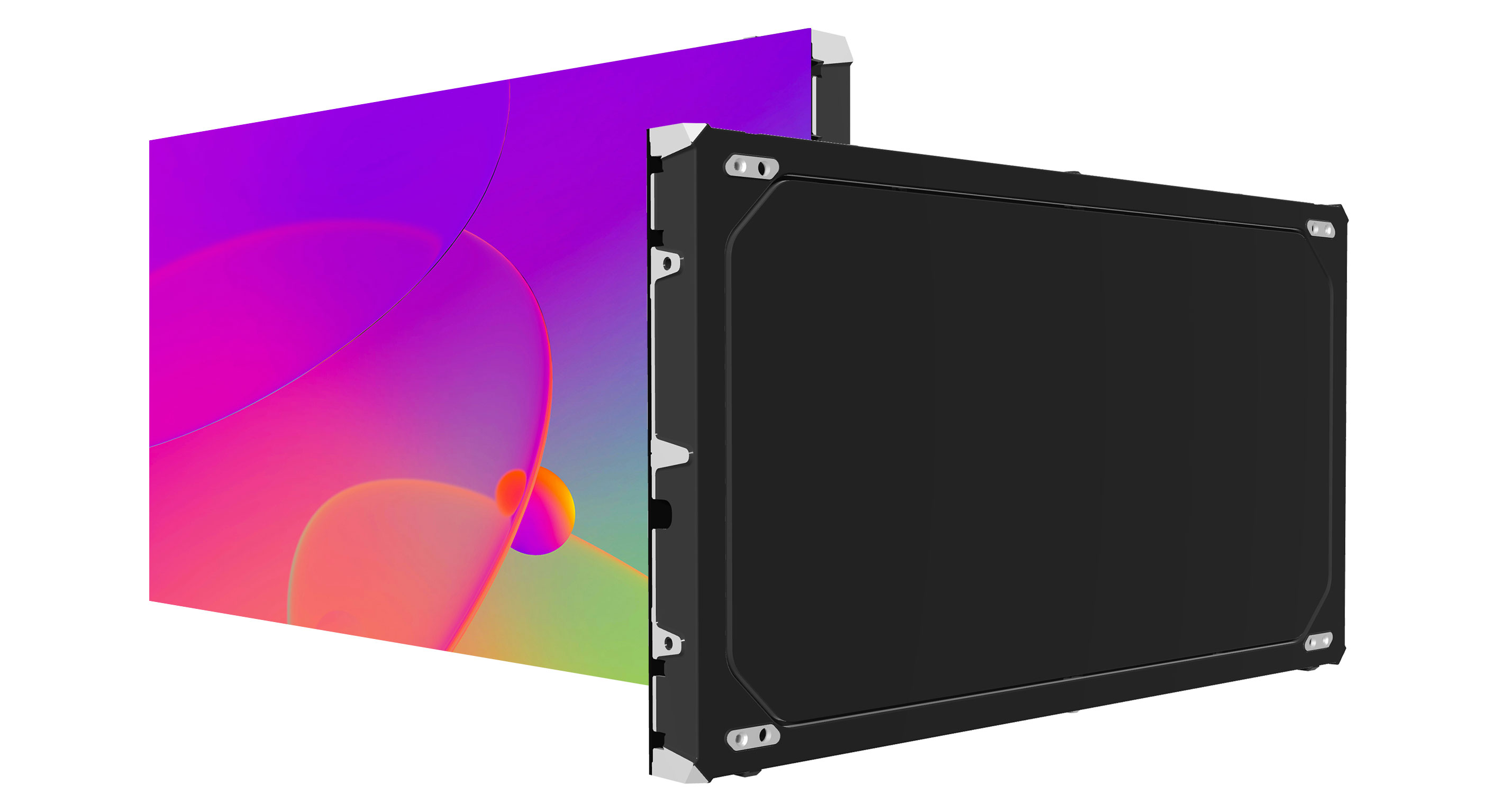

INDOOR PANEL
Core Micro LED
Pixel pitch │ p0.7 p0.9 p1.2 p1.5 p1.8
Panel size | 600 x 337.5 mm
Application │ Situation Room Meeting Room VIP Space
Features
Experience true black screens with deep contrast and realism with 5th generation Micro LEDs.
DualCoat is a high-quality double coat that resists temperature changes and protects against scratches and UV fading.
DualCoat prevents dead pixels from occurring. Few physical and natural dead pixels.
LEDs do discolor over time, premium Flip-chip to minimize aging and discoloration.
Core products offer 12,000:1 contrast ratio and 1.5x more higher brightness to bring your content to life.
Class B certification ensures electromagnetic safety. It can also be used in residential environments.
The Simple Board is a cable-free, integrated design, Low failure frequency, power efficient and heat free.
22 Color bit technology recognizes brightness differences and precisely controls pixels,Soft tones provide a relaxing image.
Core Micro LED Specification
| Product | Core p0.7 | Core p0.9 | Core p1.2 | Core p1.5 |
|---|---|---|---|---|
| Pixel pitch | 0.78125 mm | 0.9375 mm | 1.25 mm | 1.5625 mm |
| Brightness | 600 nit | 600 nit | 600 nit | 600 nit |
| Module size | 150 x 168.75 mm | 150 x 168.75 mm | 150 x 168.75 mm | 150 x 168.75 mm |
| Module resolution | 192 x 216 px | 160 x 180 px | 120 x 135 px | 96 x 108 px |
| Panel size | 600 x 337.5 mm | 600 x 337.5 mm | 600 x 337.5 mm | 600 x 337.5 mm |
| Panel resolution | 768 x 432 px | 640 x 360 px | 480 x 270 px | 384 x 216 px |
| Refresh rate | 3,840 Hz | 3,840 Hz | 3,840 Hz | 3,840 Hz |
| Viewing angle | 178° (H, V) | 178° (H, V) | 178° (H, V) | 178° (H, V) |
| Weight | 23 kg/sqm | 23 kg/sqm | 23 kg/sqm | 23 kg/sqm |
| Working temperature | -20~40℃ | -20~40℃ | -20~40℃ | -20~40℃ |
| Humidity | 10~85% | 10~85% | 10~85% | 10~85% |
| Maintenance | Front | Front | Front | Front |
| Power consumption | Max. 370 | Avg. 124 w/sqm | Max. 370 | Avg. 124 w/sqm | Max. 370 | Avg. 124 w/sqm | Max. 370 | Avg. 124 w/sqm |
| Input voltage | AC100~240V 50/60Hz | AC100~240V 50/60Hz | AC100~240V 50/60Hz | AC100~240V 50/60Hz |
| Life span | 100,000 hours | 100,000 hours | 100,000 hours | 100,000 hours |
| Grayscale | 22 bit | 22 bit | 22 bit | 22 bit |
All products are customizable, so please contact us if you would like to change the specs.
