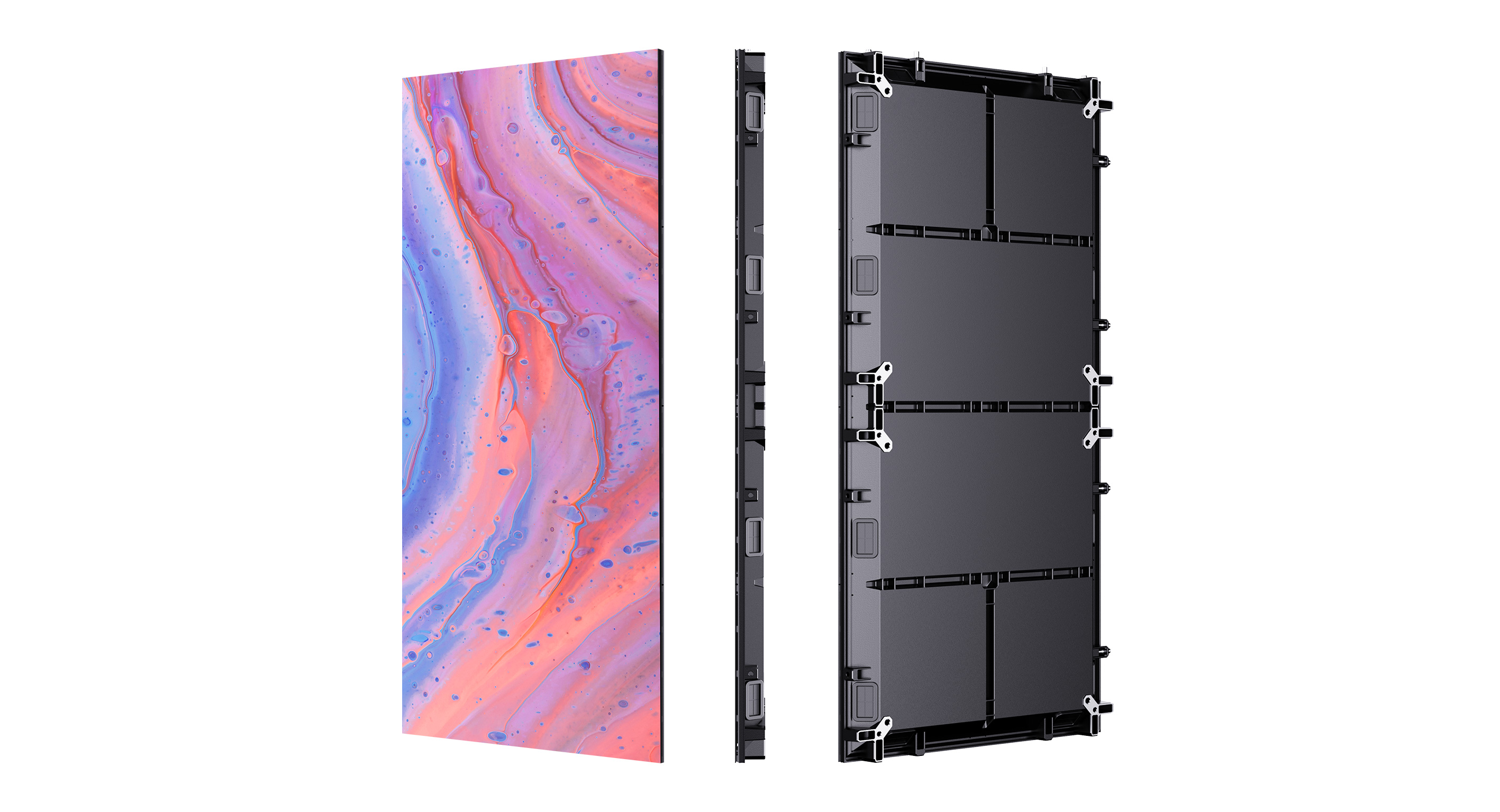

INDOOR PANEL
Brix
Pixel pitch │ p1.5 p1.8 p2.6 p2.9 p3.9
Panel size | 500 x 1000 mm 250 x 500 mm
Application │ Convention Lecture Hall Commercial Space Columns
Features
The wide range of pixel pitch designs makes it adaptable to most indoor projects and flexible to changes.
Supports both inner and outer curves. You can use custom connectors to implement to implement the curves you want.
It can be mounted 90° on poles and corners, and the screen is easily adjustable with different panel sizes.
Brix is is so durable that even screens as tall as 13 meters can be hung without a frame.
INSTALLATION EXAMPLES
Walkerhill Hotel - Vista Hall
- Product: Brix
- Pixel Pitch: 2.9 mm
- Screen size: 19.5 x 4.5 m
Brix Specification
| Product | Brix p1.5 | Brix p1.8 | Brix p2.6 | Brix p2.9 | Brix p3.9 |
|---|---|---|---|---|---|
| Pixel pitch | 1.5625 mm | 1.89393 mm | 2.60416 mm | 2.97619 mm | 3.90625 mm |
| Brightness | 600 nit | 600 nit | 800 nit | 800 nit | 800 nit |
| Module size | 250 x 250 mm | 250 x 250 mm | 250 x 250 mm | 250 x 250 mm | 250 x 250 mm |
| Module resolution | 160 x 160 px | 132 x 132 px | 96 x 96 px | 84 x 84 px | 64 x 64 px |
| Panel size | 250 x 500 | 500 x 1,000 mm | 250 x 500 | 500 x 1,000 mm | 250 x 500 | 500 x 1,000 mm | 250 x 500 | 500 x 1,000 mm | 250 x 500 | 500 x 1,000 mm |
| Panel resolution | 320 x 640 px (500 x 1,000 mm) | 264 x 528 px (500 x 1,000 mm) | 192 x 384 px (500 x 1,000 mm) | 168 x 336 px (500 x 1,000 mm) | 128 x 256 px (500 x 1,000 mm) |
| Refresh rate | 3,840 Hz | 3,840 Hz | 3,840 Hz | 3,840 Hz | 3,840 Hz |
| Viewing angle | 160° (H, V) | 160° (H, V) | 160° (H, V) | 160° (H, V) | 160° (H, V) |
| Weight | 19.4 kg/sqm | 19.4 kg/sqm | 19.4 kg/sqm | 19.4 kg/sqm | 19.4 kg/sqm |
| Working temperature | -20~40℃ | -20~40℃ | -20~40℃ | -20~40℃ | -20~40℃ |
| Humidity | 10~85% | 10~85% | 10~85% | 10~85% | 10~85% |
| Maintenance | Front | Front | Front | Front | Front |
| Power consumption | Max. 500 | Avg. 167 w/sqm | Max. 500 | Avg. 167 w/sqm | Max. 500 | Avg. 167 w/sqm | Max. 500 | Avg. 167 w/sqm | Max. 500 | Avg. 167 w/sqm |
| Life span | 100,000 hours | 100,000 hours | 100,000 hours | 100,000 hours | 100,000 hours |
| Grayscale | 22 bit | 22 bit | 22 bit | 22 bit | 22 bit |
All products are customizable, so please contact us if you would like to change the specs.
